STANDARD CYLINDER (NON - MAGNETIC) MODEL- SC

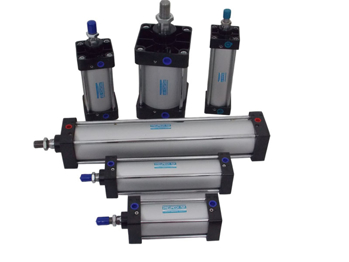

Picture of STANDARD CYLINDER (NON - MAGNETIC) MODEL- SC
STANDARD CYLINDER (NON - MAGNETIC) MODEL:PN-SC - NON - MAGNETIC , BRAND - PNEUMECH AIR
Manufacturer: PNEUMECH AIR

SLECT & CONFIGURE SIZE IN DROP DOWN

Old price: 1,200.00 (INR) excl tax
480.00 (INR) excl tax
excluding shipping
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

PRODUCT DETAILS

STANDARD CYLINDER (NON - MAGNETIC)

MODEL:PN-SC - NON-MAGNETIC , BRAND - PNEUMECH AIR

PISTON DIA .(MM):32,40,50,63,80,100,125,160,200,250
ACTION:DOUBLE ACTING
FLUID:COMPRESSED  AIR
PROOF PRESSURE:15KGF/CM²
MAX. OPERATING PRESSURE:10KGF/CM²
MIN. OPERATING  PRESSURE:0.5KGF/CM²
TEMPERATURE RANGE:0 TO 60°C
LUBRICATION:REQUIRED
OPERATING PISTON SPEED:50 TO 1000 MM/S
ALLOWABLE STROKE TOLERANCE:UP TO 250  (0-1MM) , 251  TO 1000 (0-1.5MM)
CUSHION:BOTH ENDS (AIR CUSHION)
PORT SIZE:1/8",1/4",3/8",3/8",1/2"
MAX . STROKE:1000 MM

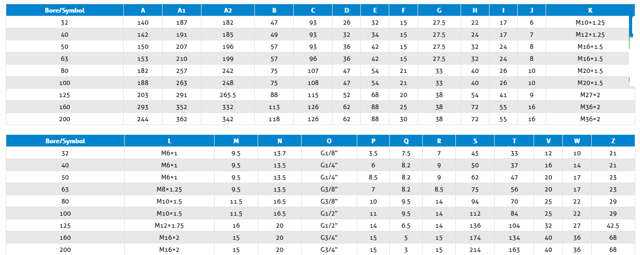

DIA(MM)32MM40MM50MM63MM80MM100MM125MM
PORT SIZEG-1/8"G-1/4"G-1/4"G-3/8"G-3/8"G-1/2"G-1/2"
